ns3::SerializationWrapper Class Reference

Class for the serialization-deserialization of the messagess to send in packets. More...

#include "serializationwrapper.h"

Inheritance diagram for ns3::SerializationWrapper:

Collaboration diagram for ns3::SerializationWrapper:

Public Member Functions
	SerializationWrapper ()
	Default constructor. More...
	SerializationWrapper (protomessage::ProtoPacket message)
	Constructor with argument. More...
virtual	~SerializationWrapper ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
	deserialize the data More...
void	GetData (protomessage::ProtoPacket *message)
	Getter of the data in the protocol header. More...
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
	compute the serialized size of the data More...
virtual void	Print (std::ostream &os) const
	dummy printing of the serialized data More...
virtual void	Serialize (Buffer::Iterator start) const
	serialize the data More...
void	SetData (protomessage::ProtoPacket message)
	Setter of the data in the protocol header. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Public Attributes
uint8_t *	m_data
	the serialized data More...
int	m_dataSize = 0
	holds the size of the serialized data in bytes More...

Detailed Description

Class for the serialization-deserialization of the messagess to send in packets.

Definition at line 54 of file serializationwrapper.h.

Constructor & Destructor Documentation

SerializationWrapper() [1/2]

ns3::SerializationWrapper::SerializationWrapper

(

)

Default constructor.

Definition at line 47 of file serializationwrapper.cc.

~SerializationWrapper()

ns3::SerializationWrapper::~SerializationWrapper ( )

virtual

Definition at line 51 of file serializationwrapper.cc.

SerializationWrapper() [2/2]

ns3::SerializationWrapper::SerializationWrapper

(

protomessage::ProtoPacket

message

)

Constructor with argument.

Parameters

[in]

message

the protobuff object containing the data to transmit

Definition at line 85 of file serializationwrapper.cc.

References SetData().

Here is the call graph for this function:

Member Function Documentation

Deserialize()

uint32_t ns3::SerializationWrapper::Deserialize ( Buffer::Iterator  start )

virtual

deserialize the data

Parameters

[in,out]

start

an iterator which points to where the data should read from.

Returns

the number of bytes read.

Definition at line 110 of file serializationwrapper.cc.

References m_data, and m_dataSize.

GetData()

void ns3::SerializationWrapper::GetData

(

protomessage::ProtoPacket *

message

)

Getter of the data in the protocol header.

Parameters

[in,out]

message

pointer to the protobuff object for storing data

Definition at line 78 of file serializationwrapper.cc.

References m_data, and m_dataSize.

Referenced by ns3::SensorNode::ReceivePacket(), and ns3::Sink::ReceivePacket().

Here is the caller graph for this function:

GetInstanceTypeId()

TypeId ns3::SerializationWrapper::GetInstanceTypeId ( void  ) const

virtual

Returns

The object TypeId.

Definition at line 42 of file serializationwrapper.cc.

References GetTypeId().

Here is the call graph for this function:

GetSerializedSize()

uint32_t ns3::SerializationWrapper::GetSerializedSize ( void  ) const

virtual

compute the serialized size of the data

Returns

return the size of the serialized data in bytes

Definition at line 91 of file serializationwrapper.cc.

References m_dataSize.

GetTypeId()

TypeId ns3::SerializationWrapper::GetTypeId ( void  )

static

Register this type.

Returns

The object TypeId.

Definition at line 31 of file serializationwrapper.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

Print()

void ns3::SerializationWrapper::Print ( std::ostream &  os ) const

virtual

dummy printing of the serialized data

Definition at line 129 of file serializationwrapper.cc.

Serialize()

void ns3::SerializationWrapper::Serialize ( Buffer::Iterator  start ) const

virtual

serialize the data

Parameters

[in,out]

start

an iterator which points to where the data should be written.

Definition at line 102 of file serializationwrapper.cc.

References m_data, and m_dataSize.

SetData()

void ns3::SerializationWrapper::SetData

(

protomessage::ProtoPacket

message

)

Setter of the data in the protocol header.

Parameters

[in]

message

the protobuff object containing the data to transmit

Definition at line 58 of file serializationwrapper.cc.

References protomessage::ProtoPacket::ByteSizeLong(), m_data, and m_dataSize.

Referenced by ns3::SensorNode::ReceivePacket(), and SerializationWrapper().

Here is the call graph for this function:

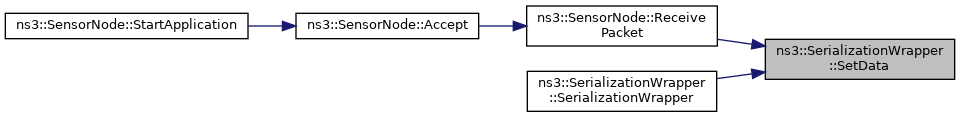

Here is the caller graph for this function:

Member Data Documentation

m_data

uint8_t* ns3::SerializationWrapper::m_data

the serialized data

Definition at line 142 of file serializationwrapper.h.

Referenced by Deserialize(), GetData(), Serialize(), and SetData().

m_dataSize

int ns3::SerializationWrapper::m_dataSize = 0

holds the size of the serialized data in bytes

Definition at line 140 of file serializationwrapper.h.

Referenced by Deserialize(), GetData(), GetSerializedSize(), Serialize(), and SetData().

---

The documentation for this class was generated from the following files:

• src/onion_routing_wsn/protocol/serializationwrapper.h
• src/onion_routing_wsn/protocol/serializationwrapper.cc
