Class that manages encryption keys and the encryption and decryption of layers of onion messagess The class is implementing the OnionRouting abstract class with the encryption and decryption methods. More...

#include "onionmanager.h"

Inheritance diagram for ns3::OnionManager:

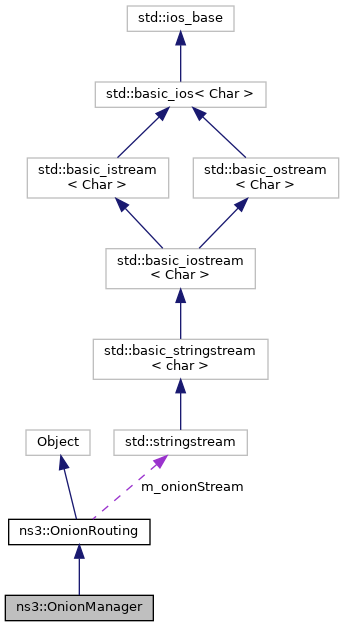

Collaboration diagram for ns3::OnionManager:

Public Member Functions
	OnionManager ()
	Default constructor. More...

	~OnionManager ()
	Default destructor. More...

virtual void	DecryptLayer (unsigned char innerLayer, unsigned char onion, uint16_t onionLen, unsigned char pk, unsigned char sk) const
	Implementing decryption using the libsodium library. More...

virtual void	EncryptLayer (unsigned char ciphertext, unsigned char message, int len, unsigned char *key) const
	Implementing encryption using the libsodium library. More...

void	GenerateNewKeyPair (void)
	Generate a new public/private keypair using the libsodium library. More...

unsigned char *	GetPK (void)
	accessor More...

std::string	GetPKtoString ()
	accessor More...

unsigned char *	GetSK (void)
	accessor More...

std::string	GetSKtoString ()
	accessor More...

unsigned char *	IpToBuff (uint32_t in)
	Convert an Ipv4 address given as an unsigned integer value to buffer array of 4Bytes. More...

void	SetPK (unsigned char *pk)
	setter More...

void	SetSK (unsigned char *sk)
	setter More...

unsigned char *	StringToUchar (std::string in)
	Convert a string to an array of unsigned chars. More...

std::string	UcharToString (unsigned char *seq, int len)
	Convert an array of unsigned chars to a std::string. More...

Public Member Functions inherited from ns3::OnionRouting
	OnionRouting ()

	OnionRouting (uint16_t keySize, uint16_t sealPadding, uint16_t addressSize)

	OnionRouting (uint16_t sealPadding, const uint16_t protocolNumber)
	Constructor – Setup parameters for the creation of onions. More...

virtual	~OnionRouting ()

void	AddressToStream (uint8_t *ip)

void	AddressToStream (uint8_t *ip)
	Output an ip address to a stream variable, used to LOG the onion message. More...

int	BuildOnion (uint8_t cipher, uint8_t route, uint16_t routeLen, uint8_t keys, uint8_t content, uint16_t contentLen)

void	BuildOnion (uint8_t cipher, uint8_t route, uint8_t *keys, uint16_t routeLen)
	Manage construction of the onion ONION_NO_CONTENT. More...

void	BuildOnion (uint8_t cipher, uint8_t route, uint8_t keys, uint16_t routeLen, uint8_t endContent, uint16_t endContentLen)
	Manage construction of the onion ONION_ENDCONTENT. More...

void	BuildOnion (uint8_t cipher, uint8_t route, uint8_t keys, uint8_t *layerContent, uint16_t layerContentLen, uint16_t routeLen)
	Manage construction of the onion ONION_LAYERCONTENT. More...

void	BuildOnion (uint8_t cipher, uint8_t route, uint8_t keys, uint8_t layerContent, uint16_t layerContentLen, uint16_t routeLen, uint8_t endContent, uint16_t endContentLen)
	Manage construction of the onion ONION_LAYERCONTENT_ENDCONTENT. More...

int	CreateOnion (uint8_t cipher, uint8_t route, uint16_t index, uint16_t routeLen, uint8_t keys, uint8_t content, uint16_t contentLen)

void	CreateOnion (uint8_t cipher, uint8_t route, uint8_t keys, uint16_t index, uint16_t routeLen, uint8_t layerContent, uint16_t layerContentLen, uint8_t endContent, uint16_t endContentLen)
	Constructs the onion message *. More...

virtual void	DecryptLayer (uint8_t innerLayer, uint8_t onion, uint16_t onionLen, uint8_t pk, uint8_t sk) const =0

virtual void	DecryptLayer (uint8_t plaintext, uint8_t ciphertext, uint16_t len, uint8_t publicKey, uint8_t secretKey) const =0
	virtual method, implement decryption More...

virtual void	EncryptLayer (uint8_t ciphertext, uint8_t message, int len, uint8_t *key) const =0

virtual void	EncryptLayer (uint8_t ciphertext, uint8_t plaintext, int len, uint8_t *key) const =0
	virtual method, implement encryption More...

enum OnionErrno	GetErrno (void)
	Return the last error code of the OnionErrno enum. More...

uint16_t	OnionLength (uint16_t routeLen, uint16_t contentLen)

uint16_t	OnionLength (uint16_t routeLen, uint16_t layerContentLen, uint16_t endContentLen)
	Compute the length in bytes of the onion message at given parameters. More...

orLayer *	PeelOnion (uint8_t onion, uint16_t onionLen, uint8_t pk, uint8_t *sk)

orLayer *	PeelOnion (uint8_t onion, uint16_t onionLen, uint8_t publicKey, uint8_t *secretKey)
	Decipher the outer layer of the onion and return details. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::OnionRouting
static TypeId	GetTypeId (void)

static TypeId	GetTypeId (void)
	Register this type. More...

Private Attributes
unsigned char	m_publickey [crypto_box_PUBLICKEYBYTES]
	the public encryption key More...

unsigned char	m_secretkey [crypto_box_SECRETKEYBYTES]
	the secret encryption key More...

Additional Inherited Members
Public Types inherited from ns3::OnionRouting
enum	OnionErrno { ERROR_NOTERROR, ERROR_PROT_NUMBER, ERROR_ROUTE_TO_SHORT, ERROR_ENCRYPTION, ERROR_DECRYPTION }
	Enumeration of the possible errors using the class onion-routing. More...

Public Attributes inherited from ns3::OnionRouting
uint16_t	m_addressSize
	size in bytes of the used address type (4-Ipv4, 16-Ipv6) More...

enum OnionErrno	m_errno
	error status while using the onion class More...

uint16_t	m_keySize

std::stringstream	m_onionStream
	stringstream used to LOG onion construction More...

uint16_t	m_sealPadding
	size increase of the ciphertext in bytes, intorduced by the encryption method More...

Detailed Description

Class that manages encryption keys and the encryption and decryption of layers of onion messagess The class is implementing the OnionRouting abstract class with the encryption and decryption methods.

Definition at line 47 of file onionmanager.h.

Constructor & Destructor Documentation

◆ OnionManager()

ns3::OnionManager::OnionManager ( )

Default constructor.

Definition at line 41 of file onionmanager.cc.

◆ ~OnionManager()

ns3::OnionManager::~OnionManager ( )

Default destructor.

Definition at line 45 of file onionmanager.cc.

Member Function Documentation

◆ DecryptLayer()

void ns3::OnionManager::DecryptLayer	(	unsigned char *	innerLayer,
		unsigned char *	onion,
		uint16_t	onionLen,
		unsigned char *	pk,
		unsigned char *	sk
	)		const

virtual

Implementing decryption using the libsodium library.

Parameters

[in,out]	innerLayer	memory on which the inner onion layer will be stored
[in]	onion	memory locations containing the data to be decrypted
[in]	len	length in bytes of the `onion`
[in]	pk	pointer to the public encryption key
[in]	sk	pointer to the secret encryption key

Definition at line 65 of file onionmanager.cc.

◆ EncryptLayer()

void ns3::OnionManager::EncryptLayer	(	unsigned char *	ciphertext,
		unsigned char *	message,
		int	len,
		unsigned char *	key
	)		const

virtual

Implementing encryption using the libsodium library.

implement onion routing class

Parameters

[in,out]	ciphertext	memory on which the ciphertext will be stored
[in]	mesage	memory locations containing the data to be encrypted
[in]	len	length in bytes of the `plaintext`
[in]	key	pointer to the encryption key

Definition at line 55 of file onionmanager.cc.

◆ GenerateNewKeyPair()

void ns3::OnionManager::GenerateNewKeyPair ( void )

Generate a new public/private keypair using the libsodium library.

handling encryption keys

Definition at line 81 of file onionmanager.cc.

References m_publickey, and m_secretkey.

Referenced by ns3::Sink::StartApplication(), and ns3::SensorNode::StartApplication().

Here is the caller graph for this function:

◆ GetPK()

unsigned char * ns3::OnionManager::GetPK ( void )

accessor

Returns: Return the pointer to the public key

Definition at line 88 of file onionmanager.cc.

References m_publickey.

Referenced by ns3::SensorNode::ProcessOnionHead().

Here is the caller graph for this function:

◆ GetPKtoString()

std::string ns3::OnionManager::GetPKtoString ( )

accessor

Returns: Return the public key as a string

Definition at line 103 of file onionmanager.cc.

References m_publickey.

Referenced by ns3::SensorNode::Handshake(), and ns3::Sink::StartApplication().

Here is the caller graph for this function:

◆ GetSK()

unsigned char * ns3::OnionManager::GetSK ( void )

accessor

Returns: Return the pointer to the secret key

Definition at line 96 of file onionmanager.cc.

References m_secretkey.

Referenced by ns3::SensorNode::ProcessOnionHead().

Here is the caller graph for this function:

◆ GetSKtoString()

std::string ns3::OnionManager::GetSKtoString ( )

accessor

Returns: Return the secret key as a string

Definition at line 111 of file onionmanager.cc.

References m_secretkey.

Referenced by ns3::Sink::StartApplication().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::OnionManager::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 34 of file onionmanager.cc.

◆ IpToBuff()

unsigned char * ns3::OnionManager::IpToBuff ( uint32_t in )

Convert an Ipv4 address given as an unsigned integer value to buffer array of 4Bytes.

Parameters

[in] in an Ipv4 address given as an unsigned integer value

Returns: the pointer to the array of 4Bytes

Definition at line 155 of file onionmanager.cc.

Referenced by ns3::Sink::PrepareOnion().

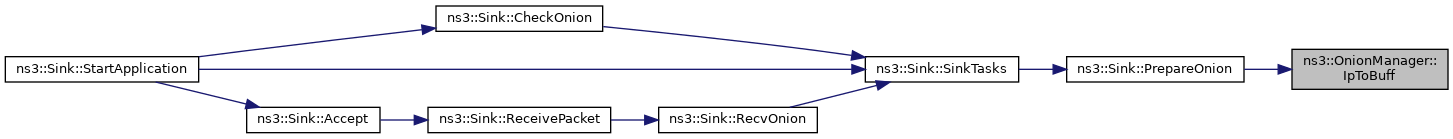

Here is the caller graph for this function:

◆ SetPK()

void ns3::OnionManager::SetPK ( unsigned char * pk )

setter

Parameters

[in] pk pointer to the public encryption key

Definition at line 119 of file onionmanager.cc.

References m_publickey.

◆ SetSK()

void ns3::OnionManager::SetSK ( unsigned char * sk )

setter

Parameters

[in] pk pointer to the secret encryption key

Definition at line 126 of file onionmanager.cc.

References m_secretkey.

◆ StringToUchar()

unsigned char * ns3::OnionManager::StringToUchar ( std::string in )

Convert a string to an array of unsigned chars.

Other methods.

Parameters

[in] in a std::string

Returns: the pointer to the array of unsigned chars

Definition at line 138 of file onionmanager.cc.

Referenced by ns3::Sink::PrepareOnion(), and ns3::SensorNode::ProcessOnionHead().

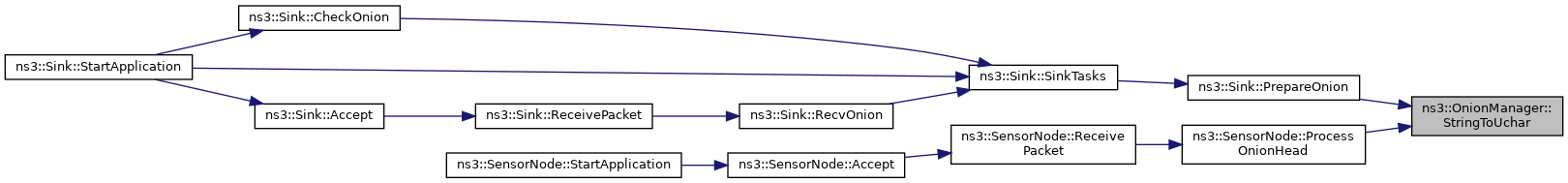

Here is the caller graph for this function:

◆ UcharToString()

std::string ns3::OnionManager::UcharToString	(	unsigned char *	seq,
		int	len
	)

Convert an array of unsigned chars to a std::string.

Parameters

[in]	seq	an array of unsigned chars
[in]	len	the length of the `seq` the array of unsigned chars

Returns: a std::string

Definition at line 147 of file onionmanager.cc.

Referenced by ns3::SensorNode::ProcessOnionHead(), and ns3::Sink::SendOnion().

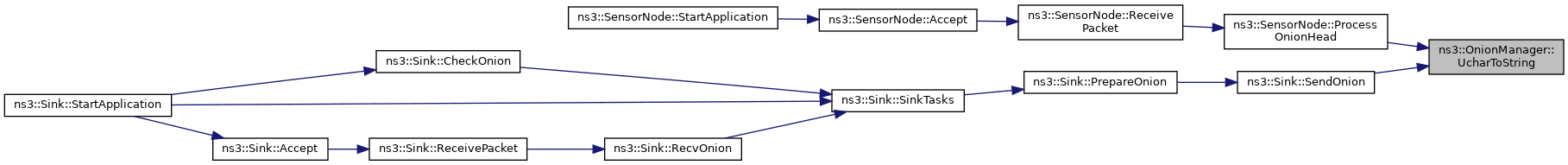

Here is the caller graph for this function:

Member Data Documentation

◆ m_publickey

unsigned char ns3::OnionManager::m_publickey[crypto_box_PUBLICKEYBYTES]

private

the public encryption key

Definition at line 191 of file onionmanager.h.

Referenced by GenerateNewKeyPair(), GetPK(), GetPKtoString(), and SetPK().

◆ m_secretkey

unsigned char ns3::OnionManager::m_secretkey[crypto_box_SECRETKEYBYTES]

private

the secret encryption key

Definition at line 192 of file onionmanager.h.

Referenced by GenerateNewKeyPair(), GetSK(), GetSKtoString(), and SetSK().

The documentation for this class was generated from the following files:

src/onion_routing_wsn/managers/onionmanager.h
src/onion_routing_wsn/managers/onionmanager.cc
