The class that constructs the WSN, setup applications on nodes and starts the simulation. More...

#include "wsnconstructor.h"

Inheritance diagram for WsnConstructor:

Collaboration diagram for WsnConstructor:

Public Member Functions
	WsnConstructor ()
	Default constructor. More...

void	Configure ()
	Generate a description of attributes given from the config file and from CLI set the simulation seed and verbosity. More...

void	Run ()
	Construct the WSN, install applications on nodes and start the simulation. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Private Member Functions
void	AODVrouting ()
	Install AODV routing. More...

void	BuildDiscTopology ()
	Deploy nodes at random positions on a disc shaped plane. More...

void	BuildGridTopology ()
	Sensor nodes are deployed according to a grid structure; each sensor node is equidistant from the closest sensor nodes in cardinal directions. More...

void	CaptureStatistics ()
	Instantiate objects for collecting data with the statistical framework. More...

void	CreateDevices ()
	Create Network devices and setup the wireless communication based on the IEEE 802.11n Allow to select from 2.4GHz to 5GHz and setup different MCS using the attribute system. More...

void	CreateNodes ()
	Create node objects. More...

void	DSDVrouting ()
	Install DSDV routing. More...

void	DSRrouting ()
	Install DSR routing. More...

void	InstallApplications ()
	Install applications on nodes and setup starting time of the handshake and the onion start time. More...

void	InstallInternetStack ()
	Installing the internet stack on nodes and setting up IP-addresses. More...

void	OLSRrouting ()
	Install OLSR routing. More...

void	ProcessPathString ()
	Split the string `m_pathsLengths` by the delimiter (,) and save each value into `m_onionPathsLengths` and the number of values into `m_numOnionPaths`. More...

Private Attributes
DataCollector	data
	Collect data with the stats framework. More...

uint16_t	m_cellSide
	Parameter for the setup of the grid topology. More...

enum IEEE_80211n	m_mac
	Carrier frequency of the IEEE 802.11n. More...

uint16_t	m_mss
	maximum segment size More...

uint16_t	m_numNodes
	number of sensor nodes in the WSN More...

uint16_t	m_numOnionPaths = 0
	Number of different onion paths. More...

uint16_t *	m_onionPathsLengths
	Array containing one onion path length in each cell. More...

uint16_t	m_onionRepeate
	Number of times to generate the onion for each value of path length. More...

Ptr< OnionValidator >	m_onionValidator
	Checks if the onion messagess transiting in the network are valid. More...

Ptr< OutputManager >	m_outputManager
	Manages the output of the simulation. More...

std::string	m_pathsLengths
	String of values delimited by the symbol "," each value representing the number of hops the onion will travel to return back to the sink node issuer of the onion. More...

uint16_t	m_radius
	Parameter for the setup of the random disc topology. More...

enum Routing	m_routing
	routing algorithm for wireless multihop networks More...

std::string	m_simulationDescription
	String holding a description of parameters used in the simulation. More...

std::string	m_simulationName
	name of the simulation More...

uint32_t	m_simulationSeed
	seed to use for the random generation of numbers during the simulation More...

NodeContainer	m_sink
	Container of the sink node. More...

enum CommunicationStatistics	m_stats
	setting of recording communication statistics More...

enum Topology	m_topology
	network topology More...

enum Verbosity	m_verbosity
	verbosity of the simulation More...

MobilityHelper	mobility
	Topology helper. More...

ApplicationContainer	sensornodeApps
	Container of sensor node applications. More...

NodeContainer	sensornodes
	Container of sensor nodes. More...

ApplicationContainer	sinkApps
	Container of sink node applications. More...

NetDeviceContainer	wifiDevices
	Container of wireless devices. More...

Ipv4InterfaceContainer	wifiInterfaces
	Container of netork interfaces. More...

NodeContainer	wifiNodes
	Container of wireless nodes. More...

Detailed Description

The class that constructs the WSN, setup applications on nodes and starts the simulation.

Definition at line 69 of file wsnconstructor.h.

Constructor & Destructor Documentation

◆ WsnConstructor()

WsnConstructor::WsnConstructor ( )

Default constructor.

Definition at line 112 of file wsnconstructor.cc.

Member Function Documentation

◆ AODVrouting()

void WsnConstructor::AODVrouting ( )

private

Install AODV routing.

Definition at line 551 of file wsnconstructor.cc.

References m_simulationDescription, and wifiNodes.

Referenced by InstallInternetStack().

Here is the caller graph for this function:

◆ BuildDiscTopology()

void WsnConstructor::BuildDiscTopology ( )

private

Deploy nodes at random positions on a disc shaped plane.

The radius of the disc is selected based on r_disc² * π = A. A being the sum of circular areas covered by m_numNodes at radius m_radius Therefore the average sensor node density is maintained fixed if the parameter m_numNodes changes. The sink node is deployed in the center of the disc.

Definition at line 414 of file wsnconstructor.cc.

References m_numNodes, m_radius, m_simulationDescription, m_sink, mobility, and sensornodes.

Referenced by Run().

Here is the caller graph for this function:

◆ BuildGridTopology()

void WsnConstructor::BuildGridTopology ( )

private

Sensor nodes are deployed according to a grid structure; each sensor node is equidistant from the closest sensor nodes in cardinal directions.

The distance between sensor nodes is defined by the parameter m_cellSide The sink node is deployed in the center of the grid repleacing a sensor node.

Definition at line 459 of file wsnconstructor.cc.

References m_cellSide, m_numNodes, m_simulationDescription, m_sink, mobility, and sensornodes.

Referenced by Run().

Here is the caller graph for this function:

◆ CaptureStatistics()

void WsnConstructor::CaptureStatistics ( )

private

Instantiate objects for collecting data with the statistical framework.

data sent and received at MAC layer, and data received at Application layer

Definition at line 286 of file wsnconstructor.cc.

References data, and m_simulationDescription.

Referenced by Run().

Here is the caller graph for this function:

◆ Configure()

void WsnConstructor::Configure ( )

Generate a description of attributes given from the config file and from CLI set the simulation seed and verbosity.

Definition at line 117 of file wsnconstructor.cc.

References ns3::AODV, ns3::Both, ns3::ConsoleLog, ns3::DISC, ns3::DSDV, ns3::DSR, ns3::GRID, m_mss, m_numNodes, m_onionValidator, m_outputManager, m_routing, m_simulationDescription, m_simulationName, m_simulationSeed, m_topology, m_verbosity, ns3::OLSR, and ns3::PrintDescription.

◆ CreateDevices()

void WsnConstructor::CreateDevices ( )

private

Create Network devices and setup the wireless communication based on the IEEE 802.11n Allow to select from 2.4GHz to 5GHz and setup different MCS using the attribute system.

Set up the network: configure the physical mode, the wi-fi parameters (seting an adhoc wifi), etc.

Definition at line 336 of file wsnconstructor.cc.

References ns3::F_24GHz, ns3::F_5GHz, m_mac, m_mss, m_simulationDescription, wifiDevices, and wifiNodes.

Referenced by Run().

Here is the caller graph for this function:

◆ CreateNodes()

void WsnConstructor::CreateNodes ( )

private

Create node objects.

Create nodes and split them between node containers, to split nodes by functionality in the application.

Definition at line 317 of file wsnconstructor.cc.

References m_numNodes, m_simulationDescription, m_sink, sensornodes, and wifiNodes.

Referenced by Run().

Here is the caller graph for this function:

◆ DSDVrouting()

void WsnConstructor::DSDVrouting ( )

private

Install DSDV routing.

Definition at line 589 of file wsnconstructor.cc.

References m_simulationDescription, and wifiNodes.

Referenced by InstallInternetStack().

Here is the caller graph for this function:

◆ DSRrouting()

void WsnConstructor::DSRrouting ( )

private

Install DSR routing.

Definition at line 537 of file wsnconstructor.cc.

References m_simulationDescription, and wifiNodes.

Referenced by InstallInternetStack().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId WsnConstructor::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 39 of file wsnconstructor.cc.

References ns3::AODV, ns3::Both, ns3::ConsoleLog, ns3::DISC, ns3::DSDV, ns3::DSR, ns3::F_24GHz, ns3::F_5GHz, ns3::GRID, m_cellSide, m_mac, m_mss, m_numNodes, m_onionRepeate, m_pathsLengths, m_radius, m_routing, m_simulationName, m_simulationSeed, m_stats, m_topology, m_verbosity, ns3::N, ns3::NO, ns3::OLSR, ns3::PrintDescription, and ns3::Y.

◆ InstallApplications()

void WsnConstructor::InstallApplications ( )

private

Install applications on nodes and setup starting time of the handshake and the onion start time.

Install an aplication on network.

Definition at line 611 of file wsnconstructor.cc.

References ns3::DSDV, ns3::SensorNodeHelper::Install(), ns3::SinkHelper::Install(), m_numNodes, m_numOnionPaths, m_onionPathsLengths, m_onionRepeate, m_onionValidator, m_outputManager, m_routing, m_simulationDescription, m_sink, ns3::OLSR, sensornodeApps, sensornodes, sinkApps, and wifiInterfaces.

Referenced by Run().

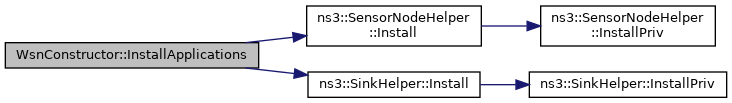

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InstallInternetStack()

void WsnConstructor::InstallInternetStack ( )

private

Installing the internet stack on nodes and setting up IP-addresses.

Set internet stack (ipv4) and its addresses.

Definition at line 504 of file wsnconstructor.cc.

References ns3::AODV, AODVrouting(), ns3::DSDV, DSDVrouting(), ns3::DSR, DSRrouting(), m_outputManager, m_routing, ns3::OLSR, OLSRrouting(), wifiDevices, and wifiInterfaces.

Referenced by Run().

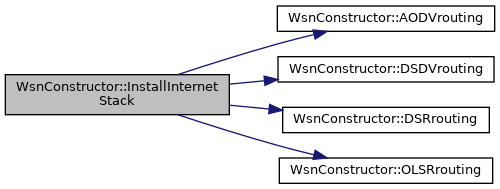

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OLSRrouting()

void WsnConstructor::OLSRrouting ( )

private

Install OLSR routing.

Definition at line 570 of file wsnconstructor.cc.

References m_simulationDescription, and wifiNodes.

Referenced by InstallInternetStack().

Here is the caller graph for this function:

◆ ProcessPathString()

void WsnConstructor::ProcessPathString ( )

private

Split the string m_pathsLengths by the delimiter (,) and save each value into m_onionPathsLengths and the number of values into m_numOnionPaths.

Convert the string given as parameter containing path lenghts in the array m_onionPathsLenghts containing a path length in each cell.

Definition at line 256 of file wsnconstructor.cc.

References m_numOnionPaths, m_onionPathsLengths, and m_pathsLengths.

Referenced by Run().

Here is the caller graph for this function:

◆ Run()

void WsnConstructor::Run ( )

Construct the WSN, install applications on nodes and start the simulation.

Run the simulation, showing the progress of it.

Definition at line 191 of file wsnconstructor.cc.

References BuildDiscTopology(), BuildGridTopology(), CaptureStatistics(), CreateDevices(), CreateNodes(), data, ns3::DISC, ns3::GRID, InstallApplications(), InstallInternetStack(), m_outputManager, m_simulationDescription, m_simulationName, m_stats, m_topology, ProcessPathString(), and ns3::Y.

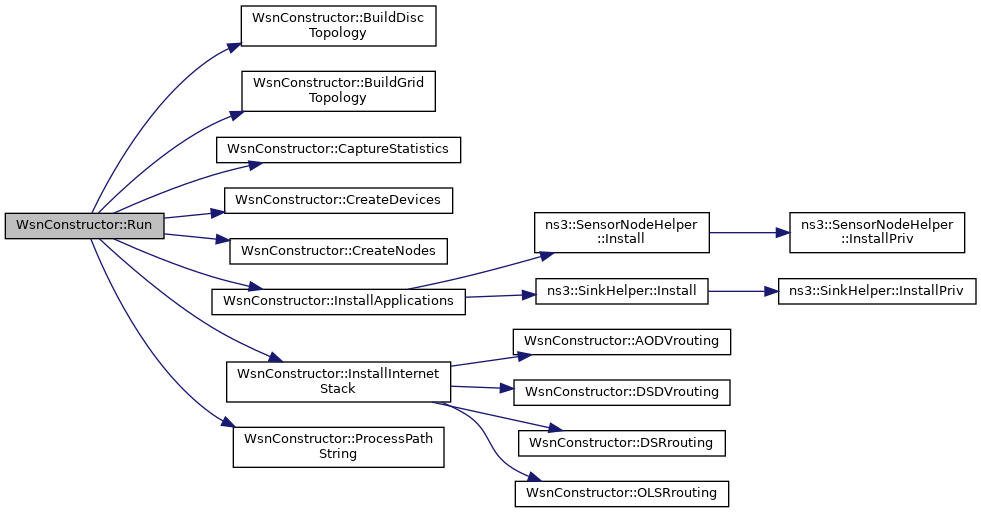

Here is the call graph for this function:

Member Data Documentation

◆ data

DataCollector WsnConstructor::data

private

Collect data with the stats framework.

Definition at line 130 of file wsnconstructor.h.

Referenced by CaptureStatistics(), and Run().

◆ m_cellSide

uint16_t WsnConstructor::m_cellSide

private

Parameter for the setup of the grid topology.

Definition at line 113 of file wsnconstructor.h.

Referenced by BuildGridTopology(), and GetTypeId().

◆ m_mac

enum IEEE_80211n WsnConstructor::m_mac

private

Carrier frequency of the IEEE 802.11n.

Definition at line 108 of file wsnconstructor.h.

Referenced by CreateDevices(), and GetTypeId().

◆ m_mss

uint16_t WsnConstructor::m_mss

private

maximum segment size

Definition at line 111 of file wsnconstructor.h.

Referenced by Configure(), CreateDevices(), and GetTypeId().

◆ m_numNodes

uint16_t WsnConstructor::m_numNodes

private

number of sensor nodes in the WSN

Definition at line 105 of file wsnconstructor.h.

Referenced by BuildDiscTopology(), BuildGridTopology(), Configure(), CreateNodes(), GetTypeId(), and InstallApplications().

◆ m_numOnionPaths

uint16_t WsnConstructor::m_numOnionPaths = 0

private

Number of different onion paths.

Definition at line 124 of file wsnconstructor.h.

Referenced by InstallApplications(), and ProcessPathString().

◆ m_onionPathsLengths

uint16_t* WsnConstructor::m_onionPathsLengths

private

Array containing one onion path length in each cell.

Definition at line 125 of file wsnconstructor.h.

Referenced by InstallApplications(), and ProcessPathString().

◆ m_onionRepeate

uint16_t WsnConstructor::m_onionRepeate

private

Number of times to generate the onion for each value of path length.

Definition at line 126 of file wsnconstructor.h.

Referenced by GetTypeId(), and InstallApplications().

◆ m_onionValidator

Ptr<OnionValidator> WsnConstructor::m_onionValidator

private

Checks if the onion messagess transiting in the network are valid.

Definition at line 118 of file wsnconstructor.h.

Referenced by Configure(), and InstallApplications().

◆ m_outputManager

Ptr<OutputManager> WsnConstructor::m_outputManager

private

Manages the output of the simulation.

Definition at line 116 of file wsnconstructor.h.

Referenced by Configure(), InstallApplications(), InstallInternetStack(), and Run().

◆ m_pathsLengths

std::string WsnConstructor::m_pathsLengths

private

String of values delimited by the symbol "," each value representing the number of hops the onion will travel to return back to the sink node issuer of the onion.

Definition at line 128 of file wsnconstructor.h.

Referenced by GetTypeId(), and ProcessPathString().

◆ m_radius

uint16_t WsnConstructor::m_radius

private

Parameter for the setup of the random disc topology.

Definition at line 112 of file wsnconstructor.h.

Referenced by BuildDiscTopology(), and GetTypeId().

◆ m_routing

enum Routing WsnConstructor::m_routing

private

routing algorithm for wireless multihop networks

Definition at line 106 of file wsnconstructor.h.

Referenced by Configure(), GetTypeId(), InstallApplications(), and InstallInternetStack().

◆ m_simulationDescription

std::string WsnConstructor::m_simulationDescription

private

String holding a description of parameters used in the simulation.

Definition at line 120 of file wsnconstructor.h.

Referenced by AODVrouting(), BuildDiscTopology(), BuildGridTopology(), CaptureStatistics(), Configure(), CreateDevices(), CreateNodes(), DSDVrouting(), DSRrouting(), InstallApplications(), OLSRrouting(), and Run().

◆ m_simulationName

std::string WsnConstructor::m_simulationName

private

name of the simulation

Definition at line 121 of file wsnconstructor.h.

Referenced by Configure(), GetTypeId(), and Run().

◆ m_simulationSeed

uint32_t WsnConstructor::m_simulationSeed

private

seed to use for the random generation of numbers during the simulation

Definition at line 104 of file wsnconstructor.h.

Referenced by Configure(), and GetTypeId().

◆ m_sink

NodeContainer WsnConstructor::m_sink

private

Container of the sink node.

Definition at line 224 of file wsnconstructor.h.

Referenced by BuildDiscTopology(), BuildGridTopology(), CreateNodes(), and InstallApplications().

◆ m_stats

enum CommunicationStatistics WsnConstructor::m_stats

private

setting of recording communication statistics

Definition at line 110 of file wsnconstructor.h.

Referenced by GetTypeId(), and Run().

◆ m_topology

enum Topology WsnConstructor::m_topology

private

network topology

Definition at line 107 of file wsnconstructor.h.

Referenced by Configure(), GetTypeId(), and Run().

◆ m_verbosity

enum Verbosity WsnConstructor::m_verbosity

private

verbosity of the simulation

Definition at line 109 of file wsnconstructor.h.

Referenced by Configure(), and GetTypeId().

◆ mobility

MobilityHelper WsnConstructor::mobility

private

Topology helper.

Definition at line 222 of file wsnconstructor.h.

Referenced by BuildDiscTopology(), and BuildGridTopology().

◆ sensornodeApps

ApplicationContainer WsnConstructor::sensornodeApps

private

Container of sensor node applications.

Definition at line 229 of file wsnconstructor.h.

Referenced by InstallApplications().

◆ sensornodes

NodeContainer WsnConstructor::sensornodes

private

Container of sensor nodes.

Definition at line 225 of file wsnconstructor.h.

Referenced by BuildDiscTopology(), BuildGridTopology(), CreateNodes(), and InstallApplications().

◆ sinkApps

ApplicationContainer WsnConstructor::sinkApps

private

Container of sink node applications.

Definition at line 228 of file wsnconstructor.h.

Referenced by InstallApplications().

◆ wifiDevices

NetDeviceContainer WsnConstructor::wifiDevices

private

Container of wireless devices.

Definition at line 226 of file wsnconstructor.h.

Referenced by CreateDevices(), and InstallInternetStack().

◆ wifiInterfaces

Ipv4InterfaceContainer WsnConstructor::wifiInterfaces

private

Container of netork interfaces.

Definition at line 227 of file wsnconstructor.h.

Referenced by InstallApplications(), and InstallInternetStack().

◆ wifiNodes

NodeContainer WsnConstructor::wifiNodes

private

Container of wireless nodes.

Definition at line 223 of file wsnconstructor.h.

Referenced by AODVrouting(), CreateDevices(), CreateNodes(), DSDVrouting(), DSRrouting(), and OLSRrouting().

The documentation for this class was generated from the following files:

src/onion_routing_wsn/wsnconstructor.h
src/onion_routing_wsn/wsnconstructor.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ WsnConstructor()

Member Function Documentation

◆ AODVrouting()

◆ BuildDiscTopology()

◆ BuildGridTopology()

◆ CaptureStatistics()

◆ Configure()

◆ CreateDevices()

◆ CreateNodes()

◆ DSDVrouting()

◆ DSRrouting()

◆ GetTypeId()

◆ InstallApplications()

◆ InstallInternetStack()

◆ OLSRrouting()

◆ ProcessPathString()

◆ Run()

Member Data Documentation

◆ data

◆ m_cellSide

◆ m_mac

◆ m_mss

◆ m_numNodes

◆ m_numOnionPaths

◆ m_onionPathsLengths

◆ m_onionRepeate

◆ m_onionValidator

◆ m_outputManager

◆ m_pathsLengths

◆ m_radius

◆ m_routing

◆ m_simulationDescription

◆ m_simulationName

◆ m_simulationSeed

◆ m_sink

◆ m_stats

◆ m_topology

◆ m_verbosity

◆ mobility

◆ sensornodeApps

◆ sensornodes

◆ sinkApps

◆ wifiDevices

◆ wifiInterfaces

◆ wifiNodes
